Part number: EA9309.3NA 50GR Manufacturer SKU: 1043777
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
Call Us Contact Customer Service at +84 08 39260681。
Live Chat Speak with one of our Technical Service Personnel.
Request a Quote Submit a quote request and a Sales Representative will contact you.
Send an Email We will respond within 1 business day.
-

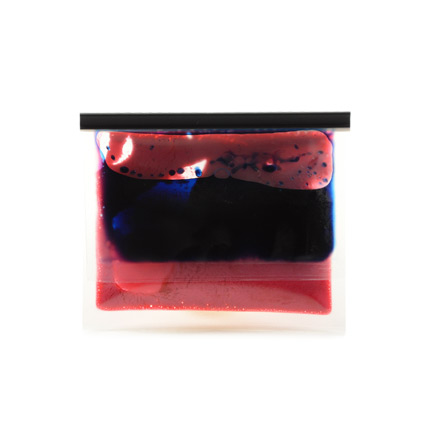

DescriptionHenkel Loctite Hysol EA 9309.3NA AERO Epoxy Adhesive is a two component paste that is used for bonding aluminum, metal skins, and honeycomb core. It offers high peel and shear strength. It forms permanent flexible joints that are resistant to water, humidity, and most fluids. 50 g E-Z Pak.
-
Product Details
Typical Use: Used for bonding aluminum, metal skins, and honeycomb core. Brand: Hysol Chemical Composition: Epoxy Color: Part A: Pink; Part B: Blue Components: 2 part Cure Time: 1h @ 82 °C Elongation: 10% Flash Point: Part A: 120 °C; Part B: >93 °C Hardness: 80 D Mix Ratio: 100:22 by weight Service Temperature: 82 °C Specific Gravity: Part A: 1.54; Part B: 1 Tensile Strength: 4,670 psi @ 25 °C Viscosity: Paste Volume Resistivity: 1.36 x 10^14 ohm-cm Working Time: 35min @ 25 °C -
SDS / TDS
